| Ask Lasest Price | |
| Brand Name : | Maccsy |
| Certification : | ISO CE |
| Model Number : | Y31800B |
| Price : | Negotiable |
| Delivery Time : | Depends on Goods |
| Payment Terms : | T/T, L/C, Trade Assurance |
| Supply Ability : | 20 sets / month |

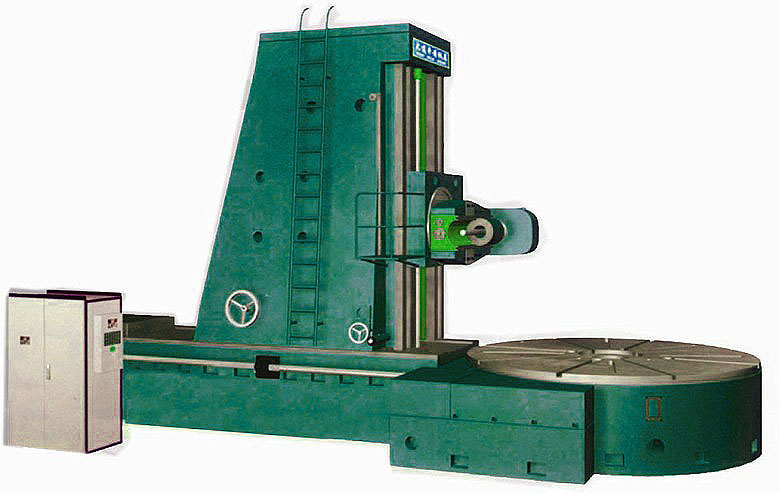

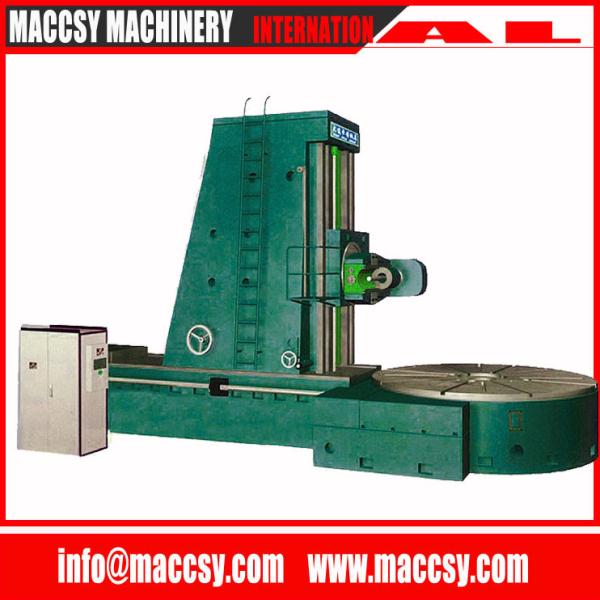

Photo of Gear Hobbing Machine
Main technical parameters:
Items | Y31800B | |
Maximum workpiece diameter | 8000mm | |
Minimum workpiece diameter | 1400mm | |
Maximum workpiece width | 1800mm | |
Maximum spiral angle | ±450 | |
Maximum hobbing modulus | Hobbing steel part | 30mm |
Hobbing casting part | 40mm | |
Finger-type milling cutter | 65mm | |
Maximum diameter of cutter | Outside diameter | 400mm |
Length | 500mm | |
Distance of tool post spindle centre to work table centre | Maximum | 4450mm |
Minimum | 750mm | |
Distance of tool post spindle centre to work table | Maximum | 2750mm |
Minimum | 750mm | |
Vertical travel of tool post | 1800mm | |
Speed of cutter | 5.5-40r/min | |
Inner hole of work table | 1000mm | |
Depth of the inner hole of work table | 1300mm | |
Diameter of work table | 3730mm | |
Amount of feed | Cutter vertical | 0.23-4.6 |
Cutter horizontal | 0.43-8.6 | |
Loading capacity of work table | 65T | |
Total power of the machine | 61KW | |
Overall dimension | Length | 13965mm |
Width | 5070mm | |
Height | ||
|
|
