| Brand Name : | Maccsy |
| Certification : | ISO CE |
| Model Number : | PM1000B |
| Price : | Negotiable |
| Delivery Time : | 1-2 Weeks |
| Payment Terms : | T/T L/C |
| Supply Ability : | 20 sets / month |

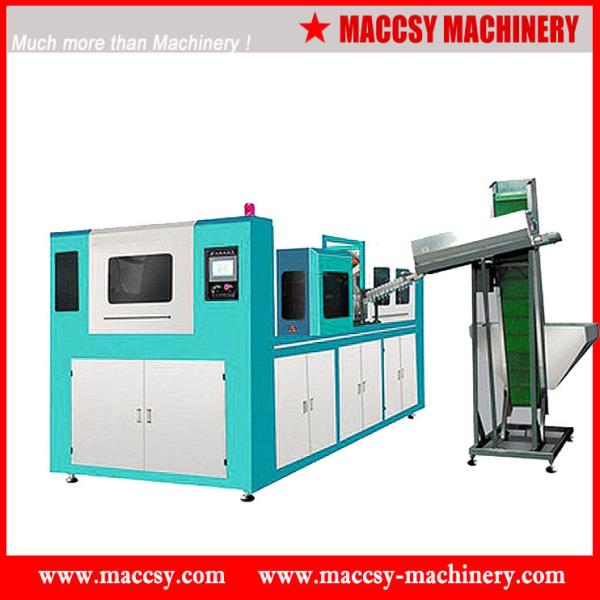

Photo of Pet bottle blowing machine PM1000B
Introduction
1.Automatic perform input and ready bottle output system.
2.Machine adopt with the overall structure of super-standard
anti-vibration design, high-speed operation state of the machine
will shake down to a minimum.
3.Machine adopts modular assembly method, greatly decrease the
local amendments due to technological improvements when the machine
is on processing.
4.The structure of machine oven adopt the international most
advanced energy-saving technology of infrared radiation heating,
temperature control with automatic negative feedback, closed-loop
regulation model.
5.Automation controlling item adopts international high-end
computer system, heating, collecting and measuring perform
temperature with simulation input and output module.
6.Man-machine interface displays current production situation,
available for on line switching, parameter modification and
production accounting, with automatic alarm, automatic fault
detection and diagnose.
Technical parameters
| Model | PM1000B2 | PM1000B4 | PM1000B6 |
| Clamping force | 30t | 40t | 50t |
| Clamping stoke | 125mm | 125mm | 125mm |
| Max stretching stroke | 400mm | 400mm | 400mm |
| bottom moving stroke | 0-50mmm | 0-50mmm | 0-50mmm |
| No. of cavities | 2 | 4 | 4 |
| Max mould thickness | 300mm | 300mm | 300mm |
| Space between tie bars | 80mm | 100mm | 120mm |
| Min air compressor | 1.6m3/min, 3mpa | 2.4m3/min, 3Mpa | 3.6m3/min,3Mpa |
| Min air compressor | 1.2m3/min,1Mpa | 1.6m3/min, 1Mpa | 1.6m3/min,1Mpa |
|
|
