| Ask Lasest Price | |
| Brand Name : | Maccsy |
| Certification : | ISO CE |
| Model Number : | LM100L |
| Price : | Negotiable |
| Delivery Time : | 1-2 Weeks |
| Payment Terms : | T/T L/C |
| Supply Ability : | 20 sets / month |

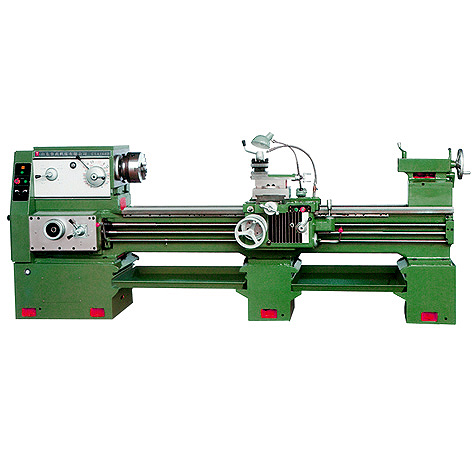

Photo of Bench Lathe
Technical parameters
| Max swing of bed | 660mm |
| Max swing over carrige | 400mm |
| Working length of saddle slot | 210mm |
| Max length of workpiece | 750/1000/1500/2000/2200/3000/4000mm |
| Rotating range of spindle | 10-1400 r/min reversing 12.5-1400 r/min |
| Power of motor | 7.5KW |
| Knife rod size | 25*25mm |
| Width of bed guide rail | 400mm |
| Net weight | 2260/2450/2640/2880/3180/3687/4200mm |
| Area cover | 750:2550*1140mm 1000:2700*1140mm 1500: 3200*1140mm 2000: 3700*1400mm 2200: 4030*1140mm 3000: 4850*1140mm 4000: 5800*1140mm |
