| Brand Name : | Maccsy |
| Certification : | ISO CE |
| Model Number : | RM200 |
| Price : | Negotiable |
| Delivery Time : | 1-2 Weeks |
| Payment Terms : | T/T, L/C, Trade Assurance |
| Supply Ability : | 20 sets / month |

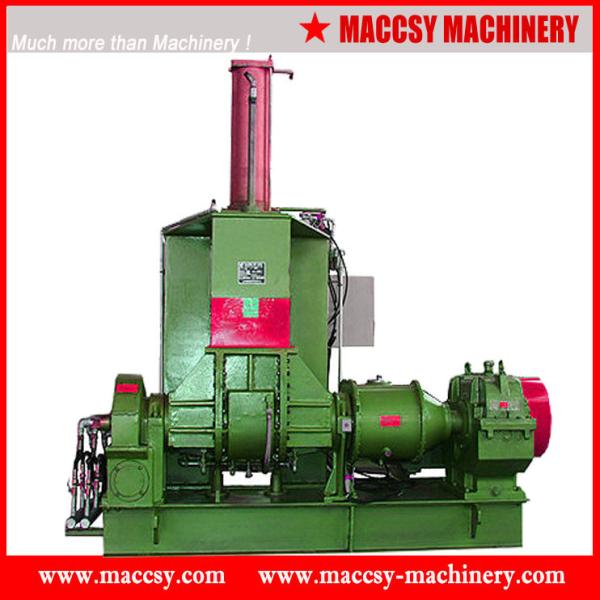

Photo of Rubber Plastic Pressure Kneader RM200 series
Technical Parameters
| Model | RM200/20*34 | RM200/35*30 | RM200/55*30 | RM200/75*30 | RM200/110*30 | RM200/150*30 |
| Kneading Total Volume | 45L | 75L | 125L | 175L | 250L | 325L |
| Mixer Total volume | 20L | 35L | 55L | 75L | 110L | 150L |
| Power of main motor | 30L | 55L | 75L | 110L | 185L | 220L |
| Overturning motor power | 1.5KW | 2.2KW | 3.0KW | 3.0KW | 7.5KW | 7.5KW |
| Overturning Angle | 140 Deg | 140 Deg | 140 Deg | 140 Deg | 140 Deg | 130 Deg |
| Spindle speed of rotor (Front/Back) | 34/28 r/min | 30/24.5 r/min | 30/24.5 r/min | 30/24.5 r/min | 30/24.5 r/min | 30/24.5 r/min |
| Pressure of compressed Air | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Cooling water pressure | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa |
| Pressure of heated steam | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Overall dimension | 3100*1300* 2450mm | 3200*1900 *2945mm | 3300*1900* 2900mm | 3760*2143* 3135mm | 4075*2712* 3580mm | 4200*3400* 3900mm |
| Weight | 4.5t | 6.5t | 7.8t | 10.23t | 14.97t | 18.5t |
|
|
